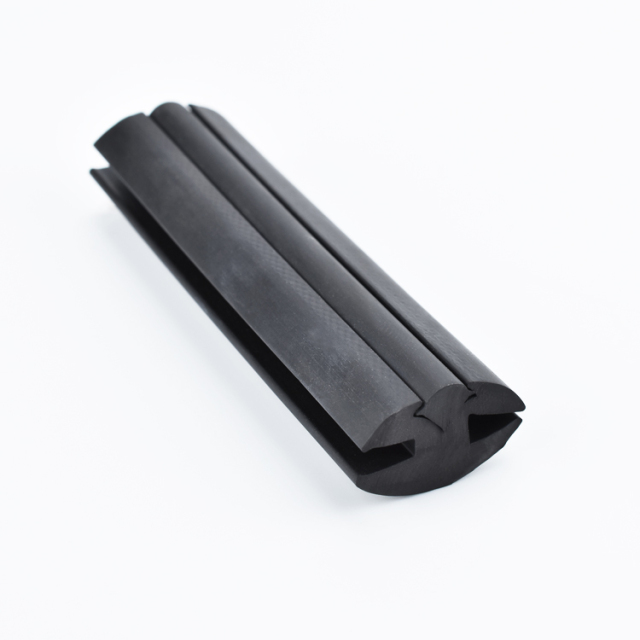

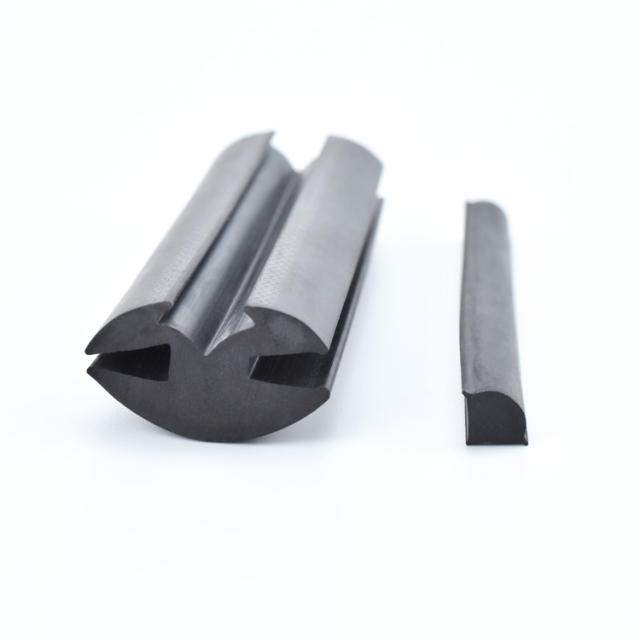

| Description | Window Integrated Locking Gasket is a component used in window installation. with a locking strip provides a tight, secure seal between a window and its frame. Integration of structure and function: It combines sealing and locking functions in one component. Sealing-wise, it blocks air, water, dust, and noise from window gaps. Locking-wise, it secures window glass or frame parts against loosening and shifting. Material options: EPDM rubber is usually used. It's durable and flexible, highly resistant to weather and aging, adaptable to various climates (hot, cold, humid, dry), and maintains good performance. Its elasticity ensures a tight fit with the window frame and glass for sealing and locking after installation. Easy installation: With an integrated design, it's simple to install. Installers can place it easily at the right window spot and use operations like snap-in or embedding to enable sealing and locking, cutting down on the complex steps of using separate parts for those functions. Wide range of application Suitable for various types of windows, including windows and windshields on vehicles and mechanical equipment such as cars, trucks, boats, and heavy equipment, can also be used for various doors and windows in buildings, which can improve the overall performance and safety of windows. such as boat windshield gaskets, car window gaskets, boat window gaskets, truck windshield gaskets, marine window gaskets, commercial window gaskets, glass window rubber gaskets, truck windshield gaskets, automotive window weather strips, and more. |
| Material | High-Quality Black Dense EPDM Rubber, Meet ASTM requirement |
| Size | 26.8*16.25mm,9.67*7.7mm or customized |
| Resistance to | Compression Set Resistance – High Tear Resistance – Strong Ozone – Excellent Electrical Insulation – Good Water Absorption – Excellent Sunlight Aging – Excellent Low Temperature – Excellent Flame Resistance – Moderate Heat resistance – Good |
| Color | Black or any other color is available |
| General Continuous Service Temperature rating | 40°C to +120°C (-40°F to +248°F) |
| Hardness | 65±5 Durometer |
| Elongation | 380 |
| Tensile strength | 10 Mpa |
