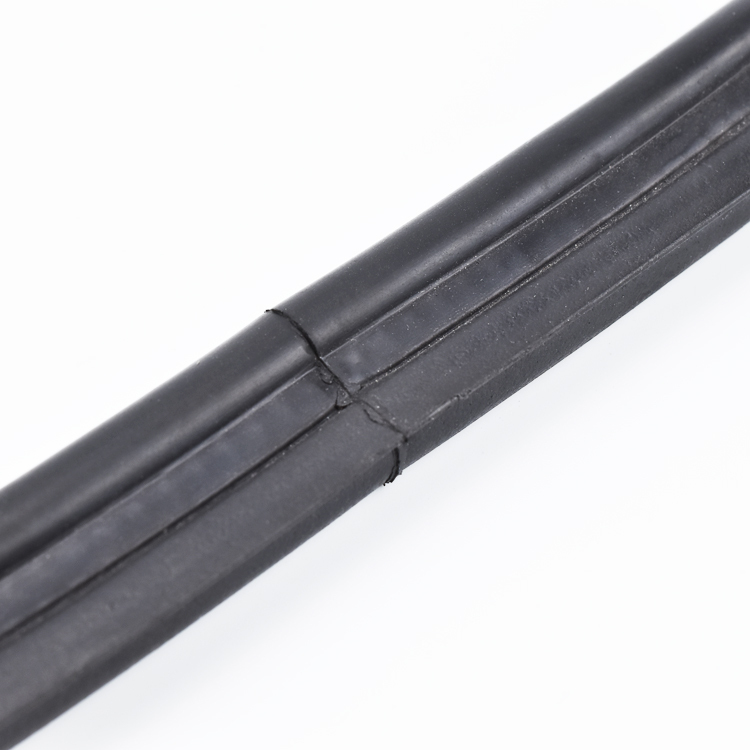

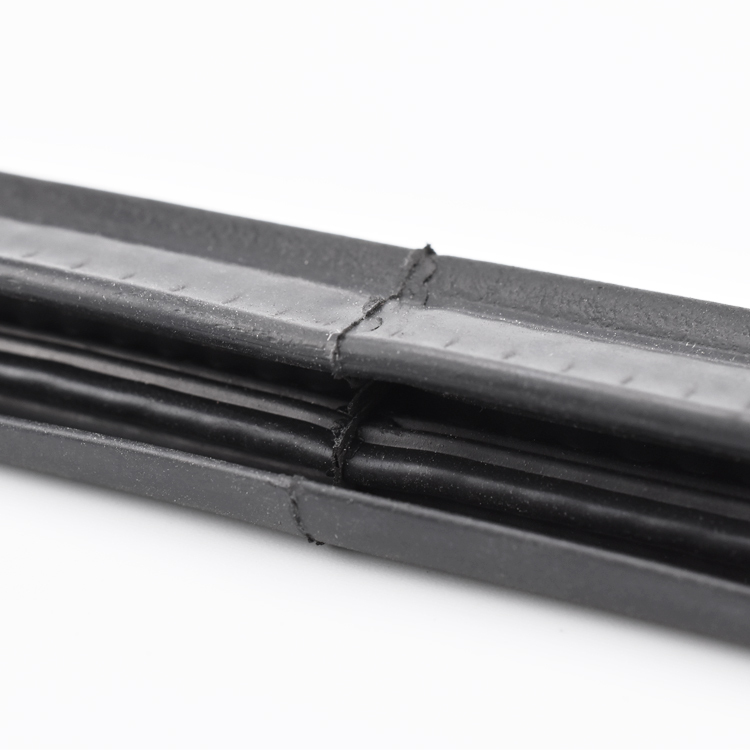

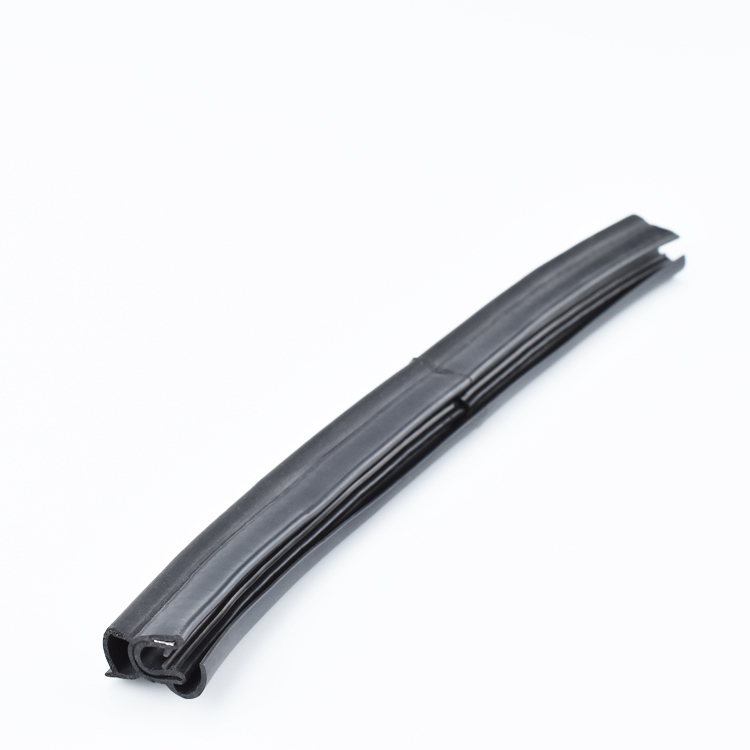

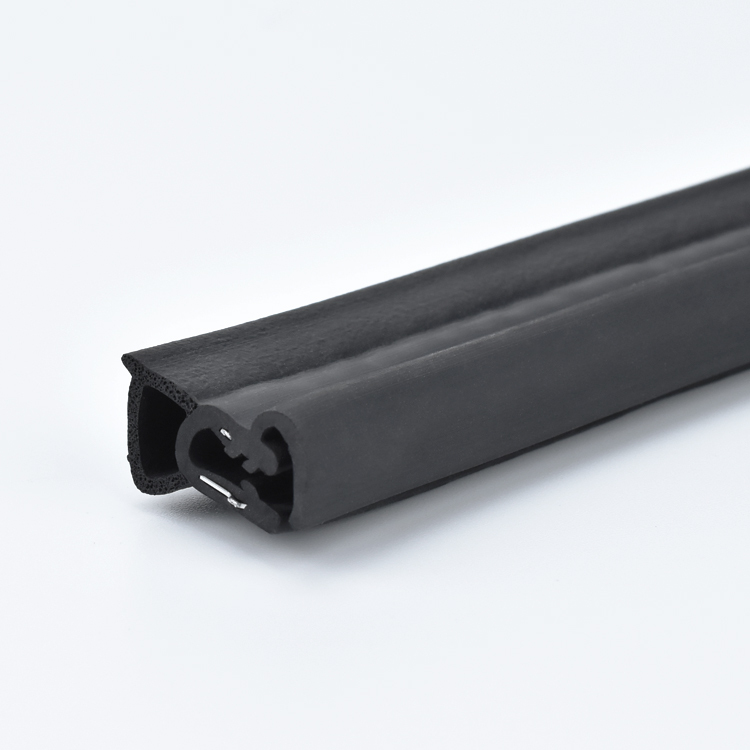

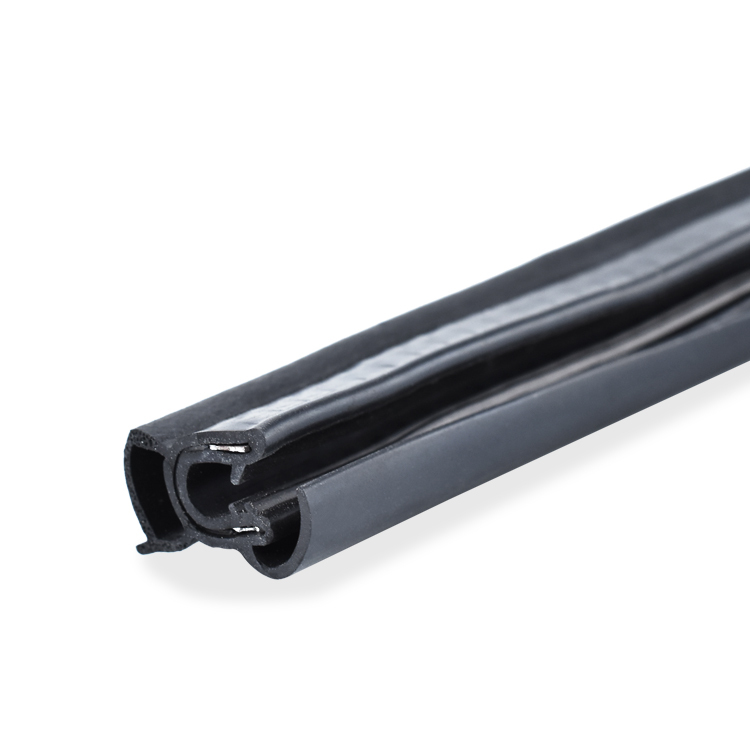

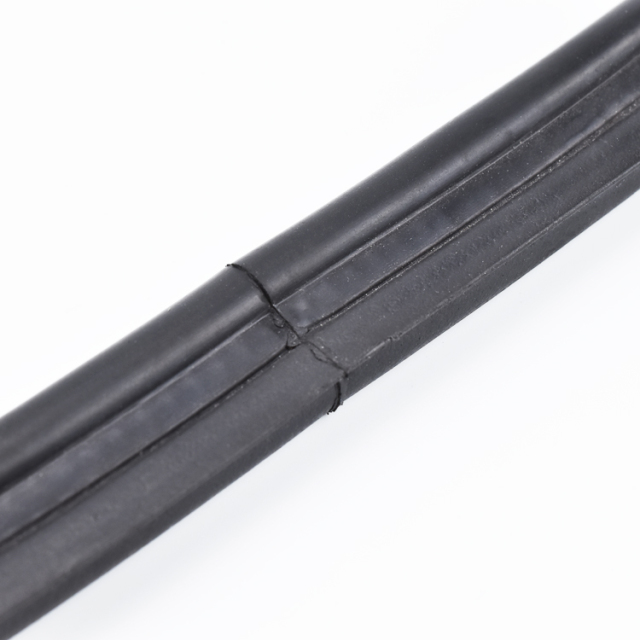

Co-extruded EPDM Edge Trim - Custom Rubber Edge Trim Seal

Co-Extruded Black EPDM Edge Trim Custom Solid and Sponge Rubber Trim Seal U Channel Auto Weather Stripping Self-grip Top Seal Profiles For Car

No.ZX.303002-273048

ZYXrubber supplies a wide variety of high-quality Co-extruded self-grip EPDM seal profiles. These products are perfect for creating an airtight and watertight seal on any window, door, or Industrial application. To get a free quote within hours.

Specification:

Customized

Material:

EPDM

nitrile rubber

silicone rubber

butyl rubber

fluororubber

neoprene

natural rubber

silicone

thermoplastic elastomer

engineering plastics

Colors:

Black

White

Brown

Gray

Blue

Other color

Description
Company Profile

Product Specification

At ZYXrubber, we specialize in providing high-quality EPDM edge trim that is perfect for sealing and protecting edges on a wide range of applications. Our edge trim products are made from durable EPDM material to offer excellent resistance against weather, abrasion, and chemical exposure.

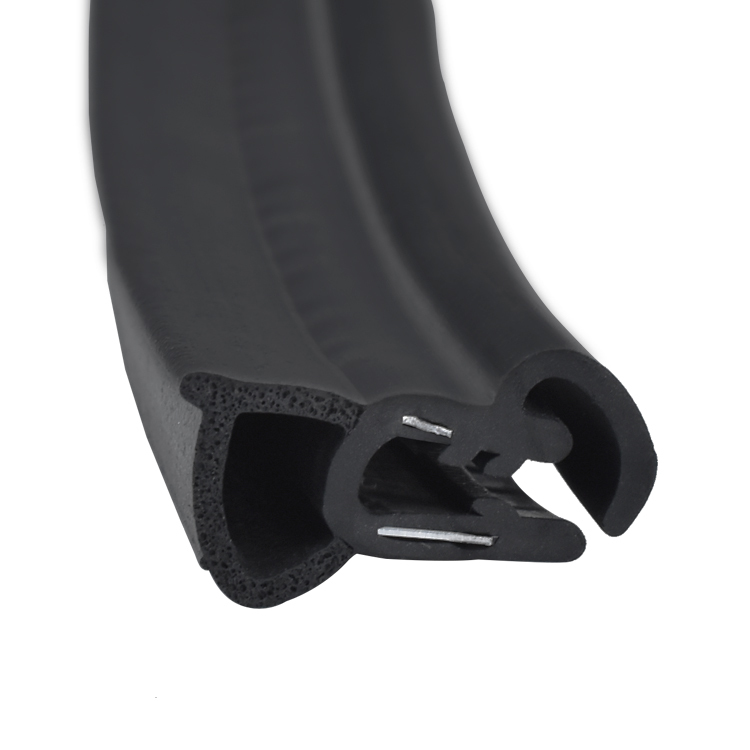

The EPDM edge trim seal strip is a co-extrusion of solid and sponge EPDM rubber material, and the U section of our sealing strips is embedded with an SPCC steel sheet. The steel sheet provides the clamping force during installation, this ensures that the clip is able to maintain its original shape even after a long period of use. It also adds additional strength to the product which enables it to protect sharp and delicate edges from damage. and the sponge rubber material is very flexible and provides the sealing function of the rubber strip. This product is applied to the tank 300 off-road SUV spare tire cover seal.

Product	Flexible Rubber Edge Trim Self-Grip Top Seal
Material	EPDM Rubber / EPDM Sponge / SPCC steel sheet
Size & shape	Customized
Craft	Co-extruded
Application	Spare Tire seals, Door seals, Watertight hatch seals, Garage seals, Enclosure seals, Industrial applications, Decorative trim
Color	Black or any other color is available
Hardness (Shore A)	contact us for your specific requirement
Tensile Strength(Mpa)	10MPA
Advantage	1, Weather resistance, heat aging resistance, low-temperature resistance, and water resistance. 2, Ozone resistance, chemical resistance. 3, Excellent anti-ultraviolet effects 4, Good electrical insulation and elasticity.

Customized options for CO-EXTRUDED TRIM SEAL

Several Materials are available: Neoprene, Silicone, Nitrile rubber, EPDM, etc
Custom any desired dimension and thickness and in different types.
Selection and matching of different colors
Backed adhesive or not
Rubber Material Hardness as per your application and project needs.
Available cut to length or in the coil as per customer requirement.
Special Grades Materials are available as per request: Food Grade, FDA Grade, Military-grade, Industrial Grade, and Commercial specification.

Why Choose ZYXrubber?

High-quality EPDM material for superior durability
Custom edge trim solutions to meet your specific needs
Fast turnaround times and competitive pricing
Expert technical support and customer service

Popular Products

Contact Us Today

If you're looking for a reliable supplier of EPDM edge trim, look no further than ZYXrubber. Contact us today to request a quote or learn more about our custom rubber edge trim solutions.

About ZYXrubber

Guangdong Zhongxiang New Materials Co., Ltd is a leading factory of seal strips and seals with independent production and customization capabilities in China. It is a specialized and innovative enterprise, a high-tech enterprise, and an industrial enterprise above a certain scale. Since its establishment in 2000, we have specialized in the research and development, design, manufacturing, and sales of rubber seals and rubber seal products, providing rubber and plastic sealing and vibration systems solutions for the manufacturing, doors and windows, construction machinery, marine, rails, and automotive industries, among others.

Company Certification: ISO9001:2015, ISO14001:2015, IATF16949:2016, SGS Certificate Approved.
Certificates: CE, REACH、RoHS、PAHs、FDA， EN 45545, UL94.
Production process: molding, extrusion, injection molding, liquid silicone, corner joints, machining, calendering, die cutting, manual molding technology
ZYXrubber supply: rubber extrusion seal strips, plastic extrusion seal strips, door seals, window seals, car seals, marine hatch rubber seals, shower door seal strips, refrigerator door seals, molded sealing parts, silicone strips/seals, silicone/rubber hardware products, etc.
The product uses sealing, insulation, edging, shock absorption, protection, fire prevention, flame retardant, etc.
Service: OEM & ODM Support
Advantages: Rich manufacturing and exporting experience, Professional engineering team and staff, Strong capacity for mass production.

Inquiry Details
Processing and customization process: customization based on drawings and samples, product quotation, payment of deposit, sample confirmed, mass production, and on-time delivery.

Sample delivery time: 1 week

Mass production delivery time: Usually 15-30 days.

When you send us inquiry, please kindly advise below information:1) Materials: ____(EPDM, Silicone, CR,etc) Hardness: ____Shore A) Density: ____g/cm³) Technical requirements: ____（Wear-resistant, high temperature resistant, waterproof, etc.) Application

Transportation method: sea freight, DHL, SF Express, FedEx
