Customizes Various O-ring Rubber EPDM Sealing Ring Manufacturers Ethylene Propylene O Ring

EPDM Rubber O Ring Specification



Ethylene Propylene O ring Material Description
The O-ring made of Ethylene Propylene Rubber (EPR) is a type of elastomeric seal commonly used in various industries for sealing applications. EPR is a type of synthetic rubber derived from the copolymerization of ethylene and propylene. It often contains a small amount of diene, which provides additional cross-linking sites for improved elasticity and heat resistance.
Generally, EPR o-rings are known to possess excellent resistance to weathering, ozone, and UV exposure, and has very good elasticity and flexibility, good chemical resistance (many acids, bases, and some hydrocarbons), and good electrical insulation property. Ethylene propylene o-ring limited resistance to aromatic hydrocarbons, ketones, and some types of oils. Not suitable for applications with continuous exposure to high temperatures above its upper limit. EPR rings are typically black in color, with a long-lasting shelf life.

O Ring EPDM Material Description
EPDM stands for Ethylene Propylene Diene Monomer. EPDM is a type of elastomer, which is a polymer with excellent elastic properties. It's composed primarily of ethylene, propylene, and a diene comonomer that enables crosslinking. EPDM is well-known for its excellent resistance to heat, water and steam, alkali, mild acidic and oxygenated solvents, ozone, sunlight (UV), and many chemicals.
EPDM O-rings are a specific type of rubber O-ring made from a synthetic rubber compound called Ethylene Propylene Diene Monomer (EPDM).  EPDM (Ethylene Propylene Diene Monomer) o-rings come in various sizes and dimensions to suit different applications. EPDM o-rings are typically black in color, with a long-lasting shelf life.
Metric EPDM O-ringTemperature Range: EPDM O-rings can withstand a wide range of temperatures, from around -40°C to 150°C (-40°F to 302°F). This versatility makes them suitable for both low and high-temperature applications.

Type of  EPDM Rubber O rings

The most common O-ring shape is a simple round or circular cross-section, but they can also come in other shapes for special applications. Here are some common O-ring shapes:

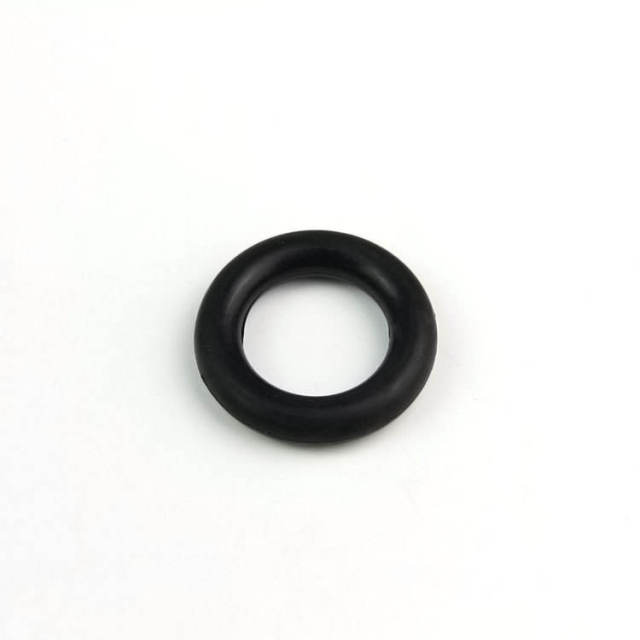

EPDM Round O Ring
EPDM Square O Ring
EPDM Rectangular O rings
EPDM D-Shaped O Ring
EPDM X-Ring
EPDM E-Ring
U-Ring
Oval O-rings
and more special shapes O rings

Application of EPDM O-rings

EPDM (Ethylene Propylene Diene Monomer) o-rings have a wide range of applications due to their excellent resistance to heat, water, and steam, as well as their good electrical insulating properties. Here are some common applications:

• Automotive Industry

• HVAC Systems
• Plumbing and Water Systems
• Electrical Equipment
• Outdoor Equipment
• Food and Beverage Industry
• Medical and Pharmaceutical
• Aerospace and Aviation

Reach out to us
EPDM o-rings, and ethylene propylene o-rings, are a type of synthetic elastomer that offers cost-effective resistance to steam and chemicals. These o-rings are especially suitable for applications involving solvents, mild acids, and other similar chemicals. ZYXrubber has a famous engineering team of EPDM o-ring seals and makes on-demand custom manufacturing according to your needs, EPDM, NBR, Viton, silicone, and more materials, durometer, temperature range, and more requirements. Whether it’s for water systems, HVAC systems, medical, pharmaceutical, food, or other uses, you can believe ZYXRubber delivers your o-rings fast and efficiently.

About ZYXrubber

Guangdong Zhongxiang New Materials Co., Ltd is a leading factory of seal strips and seals with independent production and customization capabilities in China. It is a specialized and innovative enterprise, a high-tech enterprise, and an industrial enterprise above a certain scale. Since its establishment in 2000, we have specialized in the research and development, design, manufacturing, and sales of rubber seals and rubber seal products, providing rubber and plastic sealing and vibration systems solutions for the manufacturing, doors and windows, construction machinery, marine, rails, and automotive industries, among others.

• Company Certification: ISO9001:2015, ISO14001:2015, IATF16949:2016, SGS Certificate Approved.
• Certificates: CE, REACH、RoHS、PAHs、FDA， EN 45545, UL94.
• Production process: molding, extrusion, injection molding, liquid silicone, corner joints, machining, calendering, die cutting, manual molding technology
• ZYXrubber supply: rubber extrusion seal strips, plastic extrusion seal strips, door seals, window seals, car seals, marine hatch rubber seals, shower door seal strips, refrigerator door seals, molded sealing parts, silicone strips/seals, silicone/rubber hardware products, etc.
• The product uses sealing, insulation, edging, shock absorption, protection, fire prevention, flame retardant, etc.
• Service: OEM & ODM Support
• Advantages: Rich manufacturing and exporting experience, Professional engineering team and staff, Strong capacity for mass production.

Inquiry Details
Processing and customization process: customization based on drawings and samples, product quotation, payment of deposit, sample confirmed, mass production, and on-time delivery.

Sample delivery time: 1 week

Mass production delivery time: Usually 15-30 days.

When you send us inquiry, please kindly advise below information:1) Materials: ____(EPDM, Silicone, CR,etc) Hardness: ____Shore A) Density: ____g/cm³) Technical requirements: ____（Wear-resistant, high temperature resistant, waterproof, etc.) Application

Transportation method: sea freight, DHL, SF Express, FedEx
